Description of 3 label with photoelectric sensor self-adhesive glass bottle labeling machine
1, Wheel bottle devision inlet---multi direction label adjustment---non tearing label smoothing belt
2, For automatic labeling 3 labels on neck and body of round flat or square bottle in the pharmaceuticals, daily chemicals, food & beverages industries.
3, This machine has a multi-functional labeling method: 1, not only can attach 3 labels. 2. It can also stick 2 labels on bottle body. 3. and can stick One bottle body label and one bottle neck label.
4, The labeling machine will automatically detects the label size and bottle diameter and set the appropriate labeling parameters – a very useful feature for users with multiple products to label.
5, It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.
6, Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
Technical parameter of Bottle Neck Body 3 head 3 label adhesive labeling machine:
| No | Item | Parameter |
| 1 | Main Material | Stainless Steel 304, Aluminum Alloy 6061 |
| 2 | Dimension | L 3000mm * W 1500mm * H 1800mm |
| 3 | Weight | 300Kg |
| 4 | Voltage | 220V/50Hz |
| 5 | Power | 1300 W |
| 6 | Production Capacity | 0-40m/min |
| 7 | Labeling speed | 3000 Bottles per hour |
| 8 | Labeling Accuracy | +/- 1mm beak edge |
| 9 | Label Roll Core | 76 mm |
| 10 | Label Roll Diameter | 350 mm |
| 11 | Label Width | 10~110 mm (special size can be customized) |
| 12 | Label Length | 20~360 mm (special size can be customized) |
| 13 | Bottle Diameter | 30~90 mm (special size can be customized) |
| 14 | Bottle Height | 30~200 mm (special size can be customized) |
Main Configuration of Bottle Neck Body 3 head 3 label adhesive labeling machine:
| No. | Item | Brand | Origin |
| 1 | PLC | Siemens | Germany |
| 2 | Touch Screen | WEINVIEW | Taiwan |
| 3 | Variable-frequency Drive | Schneider | France |
| 4 | Intermediate Relay | Schneider | France |
| 5 | Circuit-breaker | Schneider | France |
| 6 | Sensor | Panasonic | Japan |
| 7 | Stepper Motor Drive | FOYO | China |
| 8 | Variable frequency motor | Panasonic | Japan |
| 9 | Speed regulation motor | Panasonic | Japan |
| 10 | Gear box | Panasonic | Japan |
| 11 | Switch power | Mingwei | Taiwan |
Product Tags:
|
|

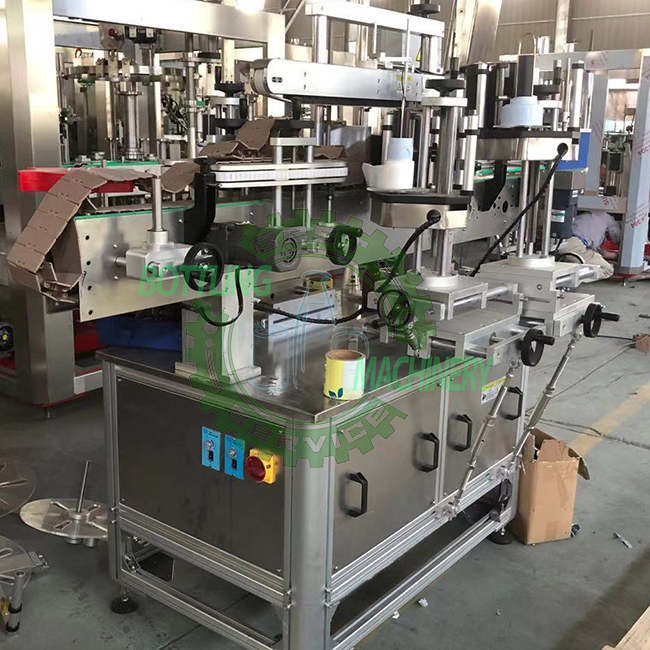

3 Label With Photoelectric Sensor Self-Adhesive Glass Bottle Labeling Machine Images
|
