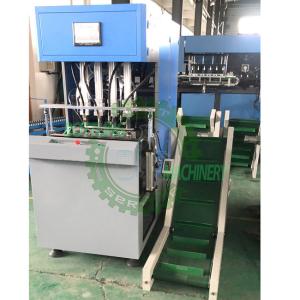

Description of 2400BPH automatic preform loading 4 cavity bottle blow molding machine
BL-4B automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-1500ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

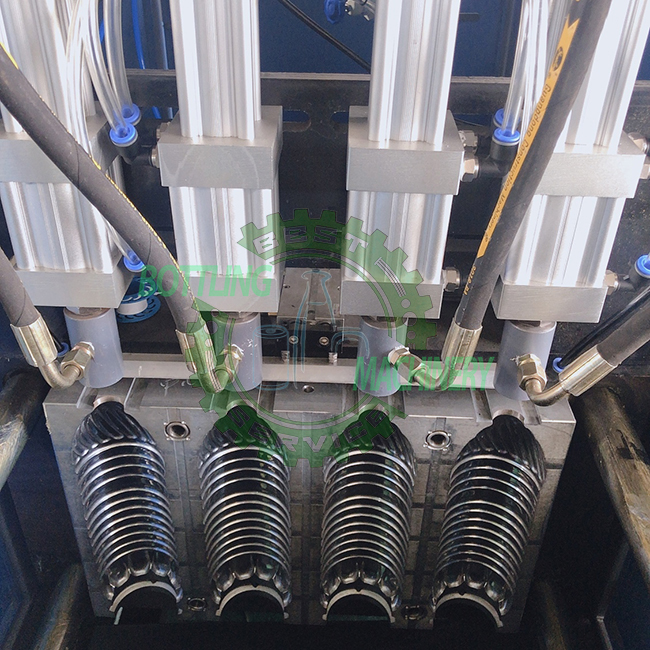

1. Bottle blowing mould of Automatic 4 CAVITY blow molding machine with auto preform elevator, auto dropper:
The bottle blowing mold is made of high-quality forged steel with brighter finish, no trachoma deformation, and finer clamping line. The patterns of each mold are carved at high speed. The unique water cooling design makes the product more three-dimensional and clearer. Two polishing and deep electroplating make the blowing mold more resistant to abrasion. Greatly improve the production quality and service life.
2. Air compressor of Automatic 4 CAVITY blow molding machine with auto preform elevator, auto dropper:
The air compressor we provide to our customers is dedicated to bottle blowing. Whether the gloss, transparency and corners of the bottle are clear is directly and closely related to the air compressor. Ordinary air compressors are also sold, but as far as the customer’s feedback is concerned, there is no difference in the work of the cheap air compressors in the first few months. After half a year of use, I found that the bottle smelled of oil stains and mist. And other issues.
This is because the pistons in ordinary air compressors are of poor quality and are easily damaged, and the piston has a short service life, resulting in insufficient air pumping capacity of the air compressor, resulting in many defective bottles. The air compressor we provide to our customers is dedicated to bottle blowing, and the piston is wear-resistant and durable. We promise to our customers that the air compressor is damaged within one year for objective reasons, and we will return it for you free of charge.
Equipment list of Automatic 4 CAVITY blow molding machine with auto preform elevator, auto dropper:
| Items | Name of machine | Model | Size(mm) | Qty. |
| 1.1 | Preform elevator | BL-4B | 1000*1000*2300 | 1set |
| 1.2 | Rotary infrared heater | | 1870*630*1450 | 1set |
| 1.3 | 4 cavity blower | | 1600*1200*1610 | 1set |
| 1.2 | HP Air Compressor | 1.2m3/min 30Kg | 1880*850*1050 | 1set |
| 1.3 | LP Air Compressor | 1.0m3/min 10Kg | 1700*760*1440 | 1set |
| 1.4 | HP Air filter | 2.0 m3/min 30Kg | 750*350*350 | 2set |
| 1.5 | LP Air filter | 1.0 m3/min 10Kg | 750*350*350 | 1set |
| 1.6 | Blow mold | 500ml | 45# STEEL | 1set |
| OPTION |
| 1.7 | Air cooling dryer | 2.0m3/min 30Kg | 1050*650*1100 | 1set |
| 1.8 | Mold chiller | 3HP | 850*560*1040 | 1set |
| 1.9 | Auto bottle elevator | / | / | 1set |
Parameters of Automatic 4 CAVITY blow molding machine with auto preform elevator, auto dropper:
| Name | Item | Unit | Details |
| Blowing machine | Dimension | mm | 1600*1200*1610mm |
| Weight | kg | 1000 |
| Bottle volume (max) | ml | 1500 |
| Bottle volume (min) | ml | 50 |
| Bottle Neck Diameter (max) | mm | 40 |
| Bottle Neck Diameter (min) | mm | 18 |
| Body Diameter (max) | mm | 125 |
| Body Height( max) | mm | 420 |
| Number of Cavities | mold | 4 |
| Production output | pcs/h | 1400-2000BPH |
| Clamping force | T | 5.7(56KN) |
| Mold thickness | mm | 200(max) |
| Mold width | mm | 530x390 |
| Diameter of Tie-bars | mm | 63 |
| Mold stroke | mm | 210 |
| Stretching stroke (max) | mm | 420 |
| Working pressure | MPA | 0.8-1.0Mpa |
| Blowing pressure | MPA | 2.0-3.0Mpa |
| Voltage/Power | V/KW | 220V(110V)/1KW |
| Pre-heater | Dimension | mm | 1870*630*1450mm |
| Weight | kg | 260 |
| Voltage/Power | V/KW | 380V/14KW |
