Description of 350BPH semi auto 1 cavity 3 gallon 5L-10L bottle blow molding machine
The 10L one blower + one preform heater semi automatic blow molding machine is suitable for blowing PET plastic bottles under 10 liters, including oil bottles, water bottles, and marine float bottles. It is a multifunctional plastic bottle blowing equipment, which can be used to produce various plastic packaging containers such as PET mineral water bottles, beverage bottles, oil bottles, daily chemical packaging bottles, etc.
The machine is divided into two parts, one part is the main machine (blowing bottles), and the other part is the oven (heating preforms)
The host is equipped with a microcomputer controller, and the machine is equipped with an emergency button, which has the function of preventing hands from being pinched, which greatly improves the productivity of workers! The exhaust gas of the machine body is discharged through the muffler to reduce noise.
The oven uses 380v three-phase industrial electricity, the heater uses infrared lamps, and the transmission part uses a three-phase motor.
1) Adopt a special electric control loop to design the lamp heating, which can adopt single or multiple synchronous control with high efficiency and reduce power consumption;
2) The system is equipped with a muffler, connecting rod and crank arm refueling device;
3) The preform will not be caught dry by external environmental factors and will be evenly heated;
4) The cold air circulation cooling system can ensure the heating consistency of the inner and outer walls of the preform;
5) The air circuit system is divided into two parts: action and blowing to meet the needs of different air pressures for action and blowing, and can provide stable high pressure to blow large-volume bottles with special shapes;
6) The operation is divided into two modes: inching and semi-automatic;
Equipment list of 350BPH Semi-auto 1 cavity blow molding machine for 10L PET bottle:
| ITEMS | NAME | MODEL | Size(mm) | Qty. |
| 1.1 | Blow Molding Machine | BL-500C 1 blower+1 heater | 2000*630*1570 2170*565*1360 | 1set |

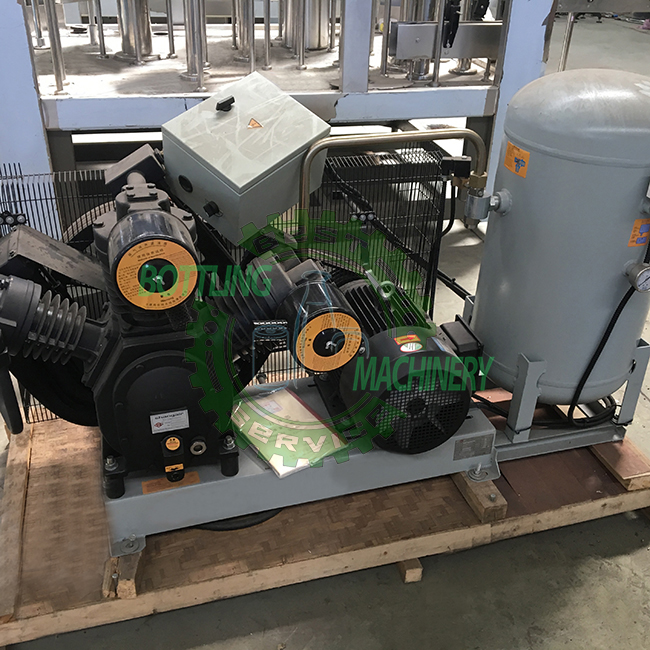

| 1.2 | HP Air Compressor | 1.2m3/min 30Kg With air tank | 1900*1000*1300 15kw | 1set |
| 1.3 | Air filter | 2.0m3/min 30kg | 300*300*660 | 2sets |
| 1.4.1 | Blow Mold | 10L one cavity | / | 1set |
| 1.4.2 | Blow Mold | 5L one cavity | / | 1set |
| OPTION |
| 1.5 | Mould Chiller | 3HP | 1200*680*1100 | 1set |
| 1.6 | Air dryer | 2.0 m3/min 30Kg | 630*420*800 | 1set |
| Parameter of 350BPH Semi-auto 1 cavity blow molding machine for 10L PET bottle: |
| Model | BL-500C |
| Container | Product material | PET |
| Volume | 5-10L |
| output | Within250-350PCS/H |
| Preform length | 15mm-320mm |
| Preform inner diameter | φ5mm-200mm |
| Moulding | Max.mould plate Dimension (L x W) | 520x350mm |
| Max.mould thickness | 180mm |
| Clamping force | 480KN |
| Mould opening stroke | 420mm |
| Machine size and weight | Main machine (L x W x H) | 2000*630*1570mm |
| Main machine weight | 900Kg |
| Heater (L x W x H) | 2170*565*1360mm |
| Heater weight | 350Kg |
| Power | 40kw |

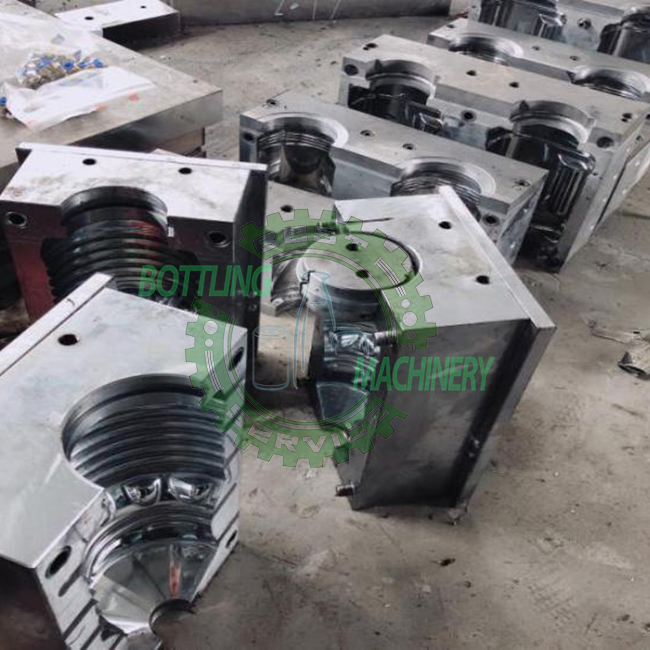

10L bottle blow mold:
