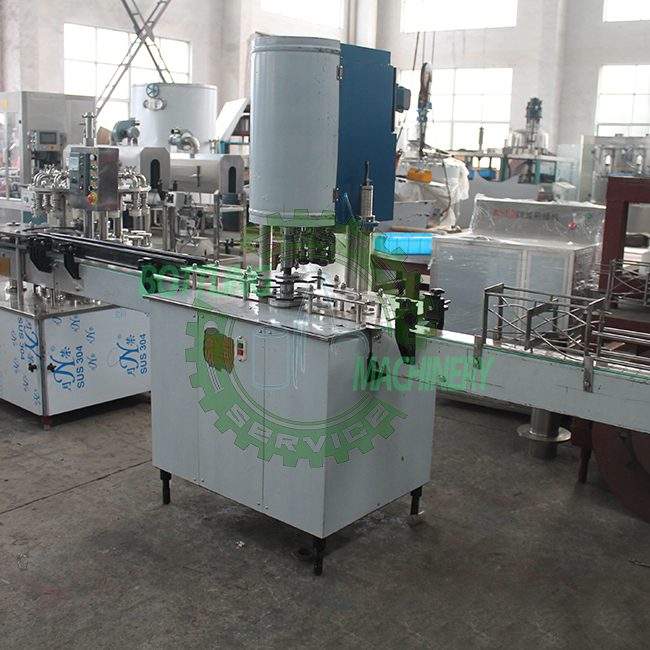

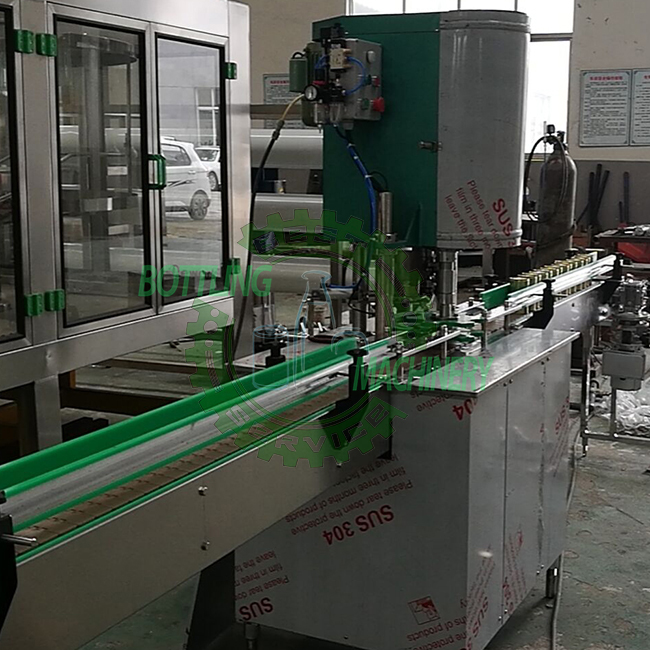

Description of One head auto pop can lid / cap sealer for cans filling machine
Principle:
Cans will go to the can sealing machine through conveyor. The 6 station dia plate will turn the cans under lid loading head , the lid will be loaded on can mouth automatically with the can body triggering. With the motor driven energy, the can which already be loaded with lid will go forward to sealing position. With the lifting cam, the sealing head can go up and down when cans come and go. The sealing head will go down to press on the can when the cans come; The sealing head are composed with 4 groups of sealing wheels around one circle, the 4 groups of wheels will turn rapidly together with sealing head in the same direction to process sealing job. The whole system will finish edge rolling job.
The sealing wheels are in 2 step sealing model to make sure the the can edge and lid edge close tightly. Then the sealed can will be suitable for all kinds of liquid, no leakage.
The machine adopts drehstrom asynchronous motor Y802-4 at 1390r/min, with deceleration by triangle belt pulley and turbine, the speed changes to 40r/min.Whole machine is made by SUS304.
Characters:
1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
2, Energy saving model, one motor can process all actions;
3, Full sealing effect make sure to be suitable for liquid packing can;
4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
5, Compact construction, only need small space to use the machine;
6, Delivered with whole machine, no need commissioning again after delivery;
| Parameters of all our automatic can sealing machines |
| Model | FXZ-1 | FBZ-6 | FBZ-8 |
| Capacity(can/hour) | 2400 | 3000-9600 | 8000-12000 |
| Sealing heads | 1 | 6 | 8 |
| Power(KW) | 0.75 | 2.2 | 2.2 |
| Dimension(mm) | 930*700*1850 | 1270*1050*1900 | 1470*1250*1900 |
| Weight(KG) | 500 | 2000 | 2500 |
